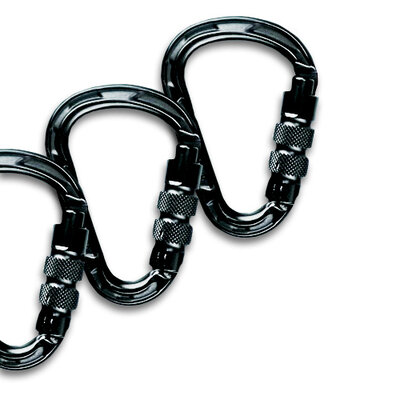

This aluminium carabiner is a reliable connecting component designed for use in 3D tifo structures and stadium choreographies. Its particularly low weight combined with high strength makes it ideal for structures that require numerous connection points while maintaining a high load capacity. Its easy handling allows ropes, nets and structural components to be attached quickly.
The large 22 mm gate opening allows the carabiner to be attached and removed comfortably, even when used with thicker ropes or attachment points. Combined with the triple-lock mechanism, the carabiner provides a reliable and secure connection. This design enables fast and efficient work, particularly when operating under time pressure, such as during the installation of stadium choreographies.
The large rope-bearing radius additionally reduces friction on the rope and ensures an even distribution of forces. The integrated key-lock system prevents the carabiner from catching during attachment and removal, providing particularly comfortable handling. This makes the aluminium carabiner a versatile and reliable accessory for professional tifo installations.
With maximum strength ratings of 22 kN along the major axis, 8 kN along the minor axis and 7 kN with the gate open, the carabiner provides a high safety margin while maintaining a minimal weight. It is therefore ideally suited for temporary structures, rope-guiding systems and connection points within complex tifo systems.
Custom-made versions and larger quantities are available upon request.
All Product Information at a Glance
- Product: Aluminium carabiner
- Material: Aluminium
- Locking mechanism: Triple-lock
- Opening: 22 mm gate opening
- Closure: Key-lock system
- Rope-bearing radius: Large, for reduced rope friction
- Major axis strength: 22 kN
- Minor axis strength: 8 kN
- Open gate strength: 7 kN
- Features: Lightweight, robust and reliable
- Application: 3D tifo structures and stadium choreographies
- Area of use: Indoor and outdoor use
- Handling: Fast and secure operation
|
