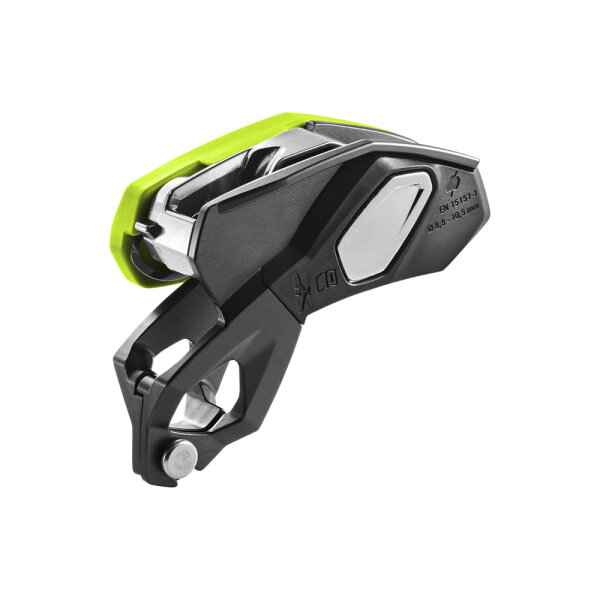

Fall protection system

SKU: 019.333.051
Category: Fall protection system

Device Type	Mechanical belay device with assisted braking
Application Area	Installation and securing of 3D tifos and stadium choreographies
Material	Steel / Aluminum
Approved Rope Diameter (Dynamic)	8.5 – 10.5 mm
Suitable for Static Ropes	10.0 – 10.5 mm (max. 120 kg system load)
Certifications	EN 15151-1, EN 12841-C, UIAA 129
Anti-Panic Function	Yes, integrated safety lock (deactivatable)
Special Feature	Direct, body-close attachment for maximum control during stadium installations

201,68 £

incl. 20% VAT , plus

Delivery time: 5 - 7 Workdays (GB - int. shipments may differ)

Pcs

Description

This mechanical belay device is ideally suited for use in stadium choreographies and 3D tifos. When installing, positioning and securing banners, fabric panels and constructions in grandstand or roof areas, it offers maximum control and particularly precise handling. Thanks to the direct attachment to the central ring of the climbing harness, the device sits close to the body and in a low position, enabling a stable working stance during work at height.

For additional safety during installations above grandstands or in roof areas, the device features an integrated anti-panic function: if the lowering lever is pulled too far, the system automatically locks. A second braking stage allows controlled operation even under low loads, such as when fine-adjusting individual fixing points. For experienced users, the anti-panic function can be deactivated if required.

Thanks to its flexible attachment in four directions (90° increments), the device can be optimally adapted to different installation positions – for example on railings, trusses or temporary rigging systems. The operation is suitable for both right- and left-handed users and supports efficient teamwork during large-scale stadium choreographies.

All product information at a glance

Device type: Mechanical belay device with assisted locking
Application: Installation and securing of 3D tifos and stadium choreographies
Direct harness attachment for a body-close and stable working position
Front steel braking grooves for linear rope guidance
Reduced rope twisting on long rope runs in stadium environments
Integrated anti-panic function (can be deactivated)
Additional second braking stage for controlled fine adjustment
Attachment possible in four directions (90° increments)
Suitable for right- and left-handed users
Compatible with dynamic ropes from 8.5 – 10.5 mm
Compatible with static ropes from 10.0 – 10.5 mm (max. 120 kg)
Certifications: EN 15151-1, EN 12841-C, UIAA 129
Material: Steel / Aluminium
